Buffer Tank (KBT-B)
100L – 2000L
Buffer tanks are made of high quality S235JR (EN 10025) corrosion resistance steel.

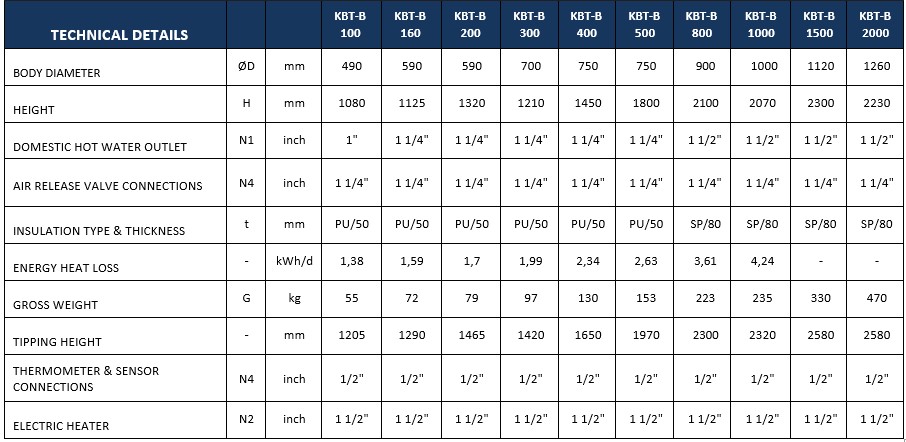

Tank in Tank Specifications
| Capacity: | 100L - 2000L | |
|---|---|---|
| MAXIMUM OPERATING TEMPERATURE: | 95 °C | |
| BODY OPERATING PRESSURE: | 6 Bar | |
| INNER SURFACE COATING | S235JR (EN 10025) corrosion resistance steel | |
| INSULATION |
100L - 500L : 42 kg/m³ water based hard PU (HCFC-Free) foam 800L - 1000L : 42 kg/m³ water based hard PU (HCFC-Free) foam (Optional) 800L - 2000L : 18 kg/m³ soft PU 800L - 2000L : 26 kg/m³ flame retardant soft PU (Optional)
|
|
| EXTERNAL COVER COATING | Artificial Leather | |
| PROTECTION ELEMENT | Magnesium Anode in accordance with DIN 4753-3 Standard (Electronic Anode Option) | |
| ELECTRIC HEATER CAN BE INSTALLED ( OPTIONAL) | ||
