Buffer Tank with single serpentine (KBT-S)
160L –2.000L
Buffer tanks are made of high quality S235JR (EN 10025) corrosion resistance steel

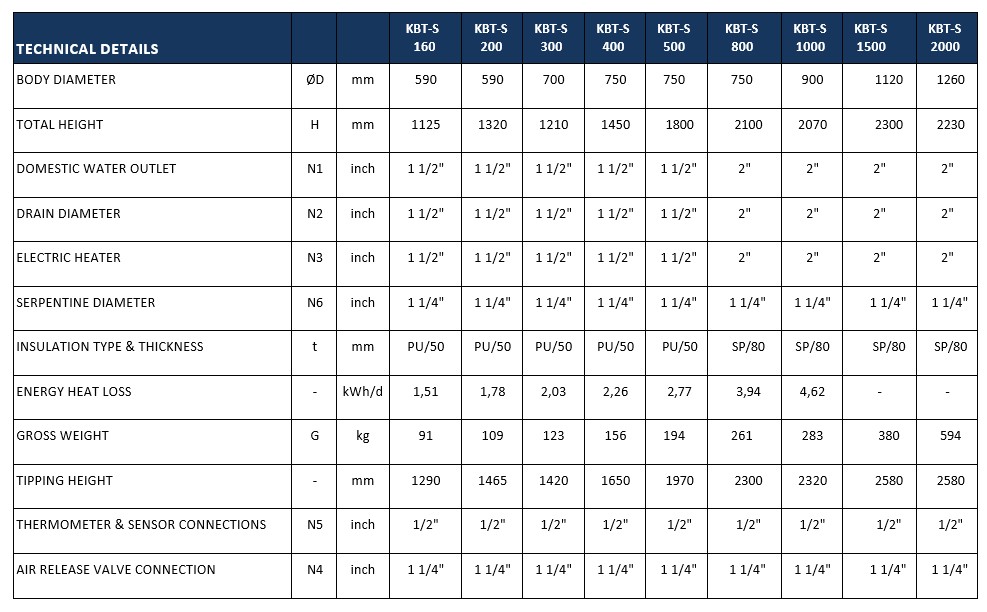

Buffer Tank Specifications
| Capacity: | 160L - 2000L |
|---|---|
| MAXIMUM OPERATING TEMPERATURE: | 95 °C |
| BODY OPERATING PRESSURE: | 6 Bar |
| THERMOMETER | 0-120°C |
| INNER SURFACE COATING | High quality S235JR (EN 10025) corrosion resistance steel |
| INSULATION |
160L - 500L : 42 kg/m³ water based hard PU (HCFC-Free) foam 800L - 1000L : 42 kg/m³ water based hard PU (HCFC-Free) foam (Optional) 800L - 2000L : 18 kg/m³ soft PU 800L - 2000L : 26 kg/m³ flame retardant soft PU (Optional) |
| EXTERNAL COVER COATING | Artificial Leather |
| ELECTRIC HEATER CAN BE INSTALLED ( OPTIONAL) | |
