Galvanized Accumulation Tank (KGA)
750L – 5000L
KGA is produced in capacities ranging from 750 litres up to 5000 litres.
The metal sheet used is S355J2. It can be produced according to PN 10
or PN 16 class. Insulation is optional and we use 60 mm soft foam with
artificial leather jacket cover. The tanks are protected against corrosion by
hot dip galvanizing method. Additionally we can provide electric heating elements (resistances) compliant with EN60335 norms.
The metal sheet used is S355J2. It can be produced according to PN 10
or PN 16 class. Insulation is optional and we use 60 mm soft foam with
artificial leather jacket cover. The tanks are protected against corrosion by
hot dip galvanizing method. Additionally we can provide electric heating elements (resistances) compliant with EN60335 norms.

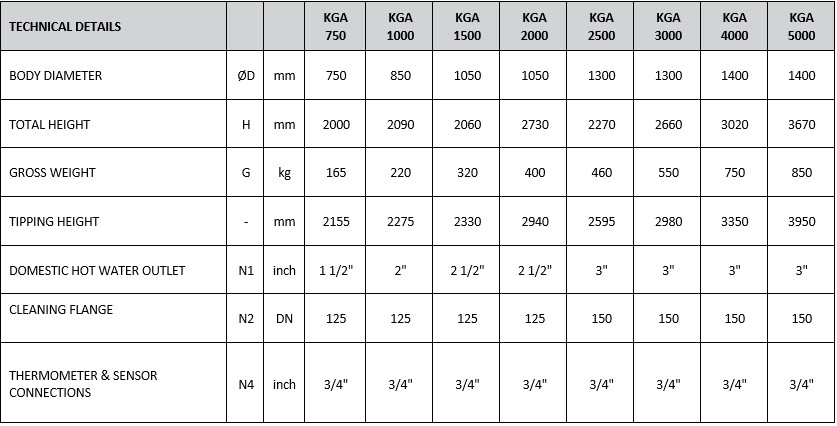

Galvanized Accumulation Tank Specifications
| Capacity: | 750L - 5000L |
|---|---|
| MAXIMUM OPERATING TEMPERATURE: | 95 °C |
| BODY OPERATING PRESSURE: | 10 Bar / 16 Bar |
| INNER SURFACE COATING | S355J2 quality steel and galvanized in accordance with TS EN ISO 1461 standard |
| INSULATION |
750-5000L: 18 kg/m³ soft PU 750-5000L: 26 kg/m³ flame retardant soft PU (Optional) |
| EXTERNAL COVER COATING | Artificial Leather |
| SENSOR CONNECTIONS | According to the operating conditions the tank has four sensor connection |
| INSPECTION FLANGE IS AVAILABLE IN ALL SERIES | |
