Tank in Tank (KCB)
500L/100L – 2000L/350L

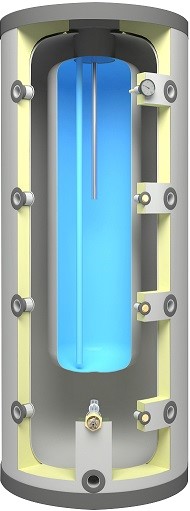

KCB Tank in Tank Boiler is highly efficient and supplies domestic hot water and supports under
floor heating systems for villas and big facilities. It provides fuel savings due to minimal
heat losses offered by the high quality insulation. There are two main heat
sources in this system. Both will heat the water in the external tank. The
inner tank (enameled) is heated by the water in the external tank and it will function as source for domestic hot water.

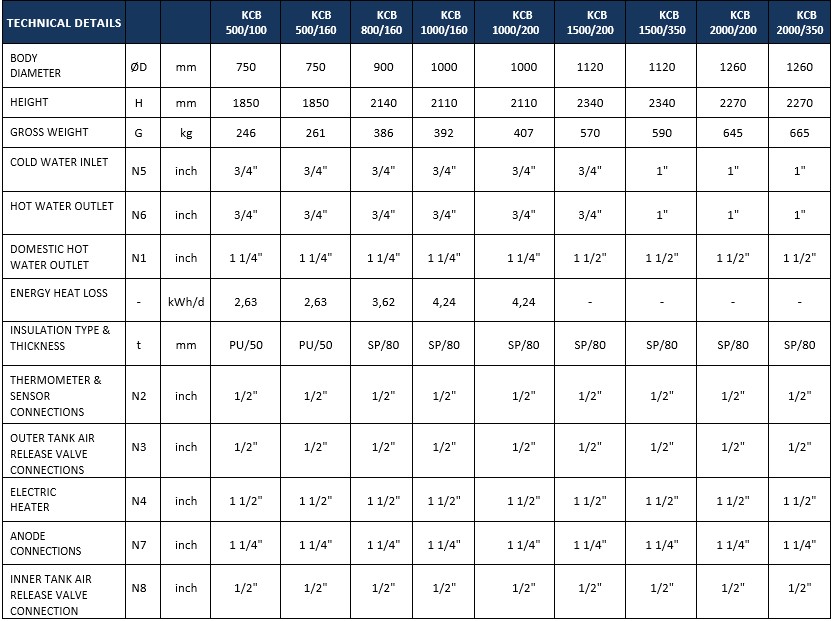

Tank in Tank Specifications
| Capacity: | 500/100L - 2000L/350L |
|---|---|
| MAXIMUM OPERATING TEMPERATURE: | 95 °C |
| OPERATING PRESSURE: | Inner Tank 3 Bar / Body: 6 Bar |
| THERMOMETER | 0-120°C |
| INNER SURFACE COATING | Enameled (glass-lined) in accordance with DIN 4753-3 Standard |
| INSULATION |
500L: 42 kg/m³ water based hard PU (HCFC-Free) foam 800-1000L: 42 kg/m³ water based hard PU (HCFC-Free) foam(Optional) 800-2000L: 18 kg/m³ soft PU 800-2000L: 26 kg/m³ flame retardant soft PU (Optional) |
| EXTERNAL COVER COATING | Artificial Leather |
| PROTECTION ELEMENT | Magnesium Anode in accordance with DIN 4753-3 Standard (Electronic Anode Option) |
| INSPECTION AND CLEANING FLANGE IS AVAILABLE IN ALL SERIES | |
| ELECTRIC HEATER CAN BE INSTALLED ( OPTIONAL) | |
